Creating a site and energy profile

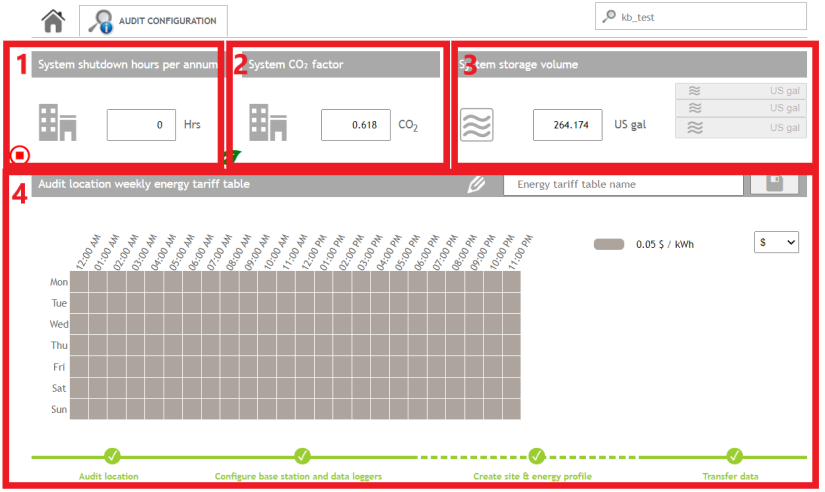

The 'Create site & energy profile' menu is shown below. Resources for understanding this menu and it's four primary sections will be included in this article.
3) System storage volume
- The software will automatically provide three estimates for the storage volume. A small, medium, and large estimate which is based on the information entered in the compressor tables during the Logger configuration step and industry best practise.
- For increased accuracy, assess / calculate the actual storage volume on site. Actual storage is the volume of the receiver and the volume of thepipework system
4) Energy tariff table
- This table allows you to select the cost/kWh on site.

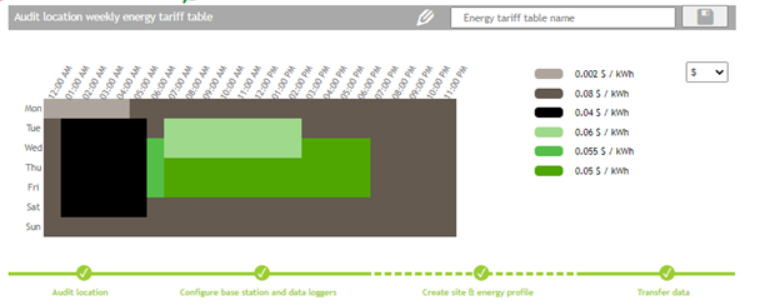

- You can edit the values on the table by clicking and dragging the cells over a selected range of time or days. Below is an example of an energy tariff table which has been customized for 6 different cost/kWh values.
