Configuring Base Station and Data Loggers

Configuring Base Station and Data Loggers

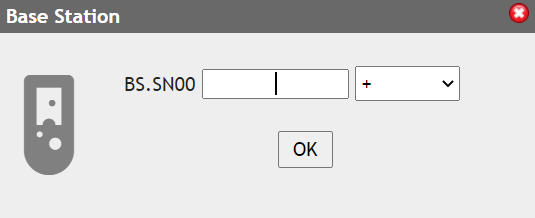

Configuring the Base Station:
Enter the Base Station serial number and press 'OK'

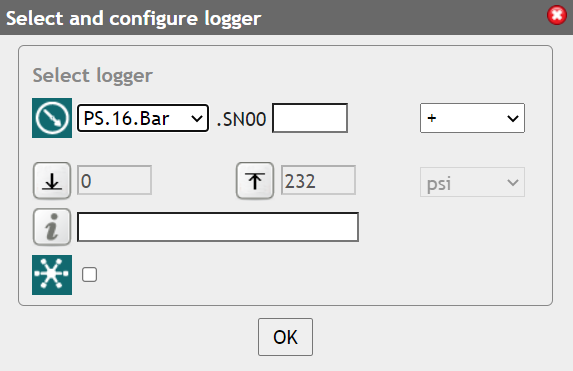

Configuring a Pressure Logger (PS.16.Bar and PS.60.Bar):
  1. Enter the Logger's serial number
  2. Enter Logger's intended use (optional)
  3. If the Logger will be used for measuring the system pressure then check the snowflake icon.


Configuring a kW Logger (CS.800A and CS.50A):

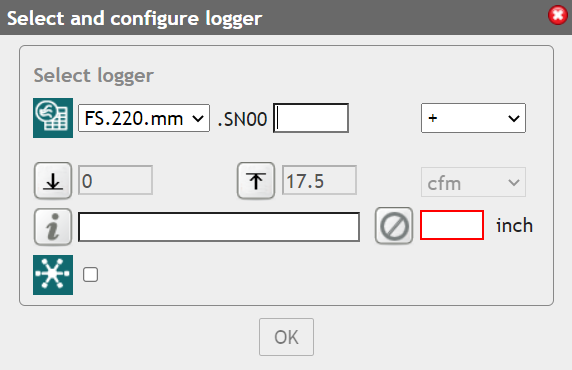

Configuring a Flow Logger (FS.220.mm):
  1. Enter Logger's serial number
  2. Enter the Logger's intended use (optional)
  3. Enter the value for the inner pipe diameter at the location of sensor installation. Note that this must be the inner pipe diameter, not the outer diameter. An accurate inner pipe diameter is required for accurate sensor calibration.
  4. If the Logger will be used for measuring the system flow then check the snowflake icon.


TS.200.Cel:
  1. Enter the Logger's serial number
  2. Enter the Logger's intended use (optional)


GP.4-20.mA:
  1. Enter the Logger's serial number
  2. Select the min measurement value corresponding to a 4mA reading
  3. Select the max measurement value corresponding to a 20mA reading
  4. Select the units
  5. Enter the Logger's intended use (optional)

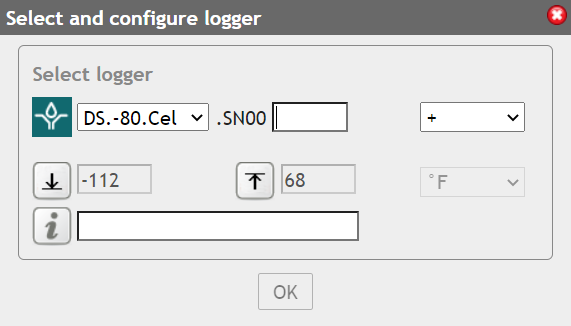

DS.-80.Cel:
  1. Enter the Logger's serial number
  2. Enter the Logger's intended use (optional)
