The Simulation Report PDF 'Time span Simulation collection'
Simulation Reports consist of a 8 page PDF. Where more that 1 Simulation has been included in the Print PDF file, Reports are sequentially included within the PDF. As an example, a Simulation Report PDF containing 2 Simulations can be downloaded from this article
Each Report follows the following format:

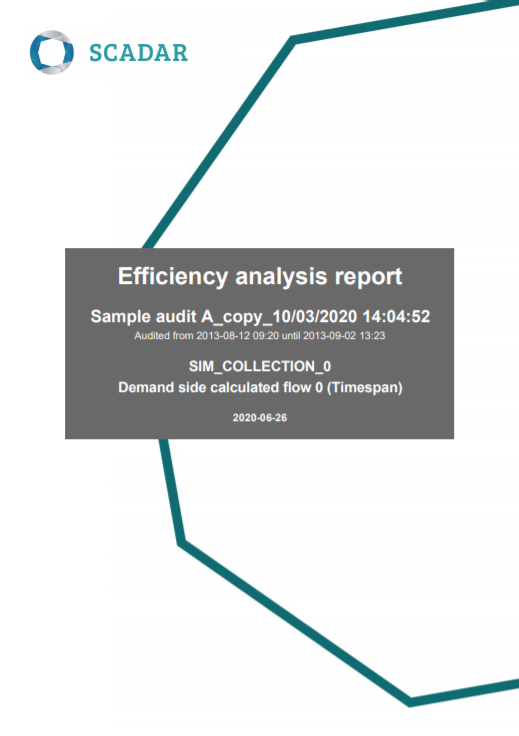

Page 1: Report cover page (Logo, Report name, Linked audit, Simulation collection name, Simulation tab name, Report production date)...

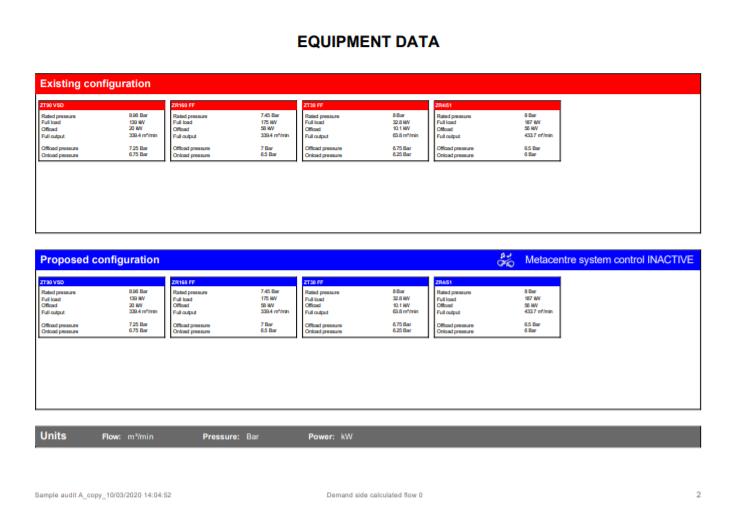

Page 2: Equipment data page describes the equipment used on the RED line, equipment used on the BLUE line, whether Metacentre system control is enabled on the BLUE line as well as the Unit of measure used within the report for Flow, Pressure and Power...

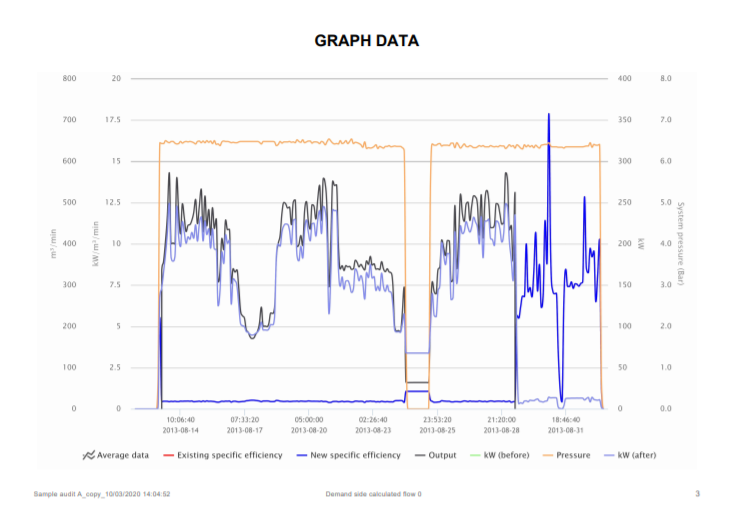

Page 3 4, 5 and 6: Shows the Simulation tab graph (only Page 3 is displayed here)...

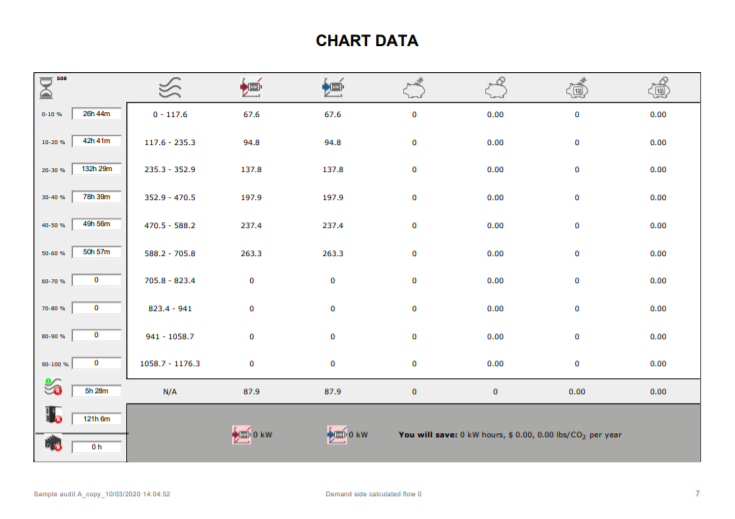

Page 7: Shows the Simulation tab chart...
Page 8: Conclusions inclusive overview of Simulation data, who the report was prepared for, who to report was prepared by, Summary conclusions author comments, signature and date location...
