Some of the Charts icons have a clock symbol on them. What does this mean?

Some of the Charts icons have a clock symbol on them. What does this mean?

Some chart types are produced twice, this is indicated by the use of the same number and the introduction of a clock symbol to differentiate them (see image below)




When present this indicates the existence of a single chart that spans the start and end time chosen by the user and a daily 24 hour chart that span the same overall period of time.  For example...


Supply side Chart 2 is the 'System power and output' chart...

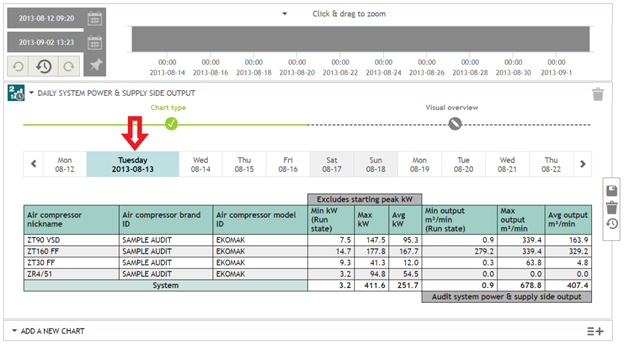

 Supply side Chart 2 with a clock symbol is the daily version of the same chart...




The additional filter permits the user to review daily charts for the same chart type.


    • Related Articles

    • What charts can I view?

      Currently there are 8 'supply side' charts and 3 'demand side' charts.  Additionally there are 2 'daily' supply side and 1 'daily' demand side charts. Supply side charts: Chart name Chart columns Useful information Equipment utilization Air ...

    • How to save Graphs or Charts and add them to a report in Publish Wizard

      Savings a Graph or a Chart: You can save a single Graph or Chart or 'all' open charts and Graphs! To save a single Graph or Chart use the 'save' button to the right of the individual Graph or Chart container The save button to the right of the ...

    • My Base station says 'Unable to resolve DNS' what does this mean?

      Lets start by understanding what DNS means... Domain Names System (DNS)? Basically, the purpose of DNS is to make human life in Internet easier... Computers on the Internet are finding each other using IP (Internet Protocol) addresses. It is a dotted ...

    • 'Calculate my kW' was enabled on one or more loggers during SYNC process. What does this mean?

      During the audit synchronisation process, SCADAR uses the logged data to establish various items of additional data such as 'kW'.  kW is calculated by taking the logged 'Volts', 'Current' & derived 'Power factor' to calculate the resulting 'kW'.  If ...

    • What's the difference in the 2 Chart toolbars?

      There are two chart tool bars, one dedicated to 'supply side' charts and the other to 'demand side' charts.  Supply side charts directly reflect what's been generated by the equipment audited whereas demand side charts reflect consumption levels down ...
