How to wire a Y07CM14.00 Vacuum Sensor to a SCADAR 4-20mA Logger

Loop-powered sensor connection (general):

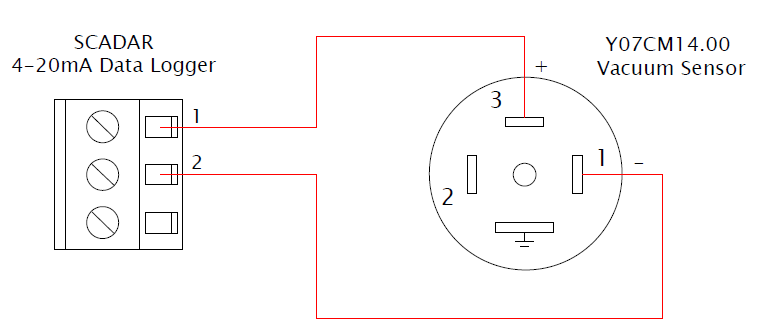

Connection with Y07CM14.00 Vacuum sensor:
