How to start a new audit on the SCADAR Base Station?

How to start a new audit on the SCADAR Base Station?

Before starting a new audit, make sure your Base Station settings are up to date and create a new audit configuration on the SCADAR Cloud.  For more info on the above, please review the FAQs 'How do I prepare the SCADAR Base Station for first use?', 'How do I set the time and date on my SCADAR Base Station', 'How do I update the software in the Scadar Base Station' and 'How to start a new audit on the SCADAR coud'


On Base Station:


Step 1: Cloud to Base

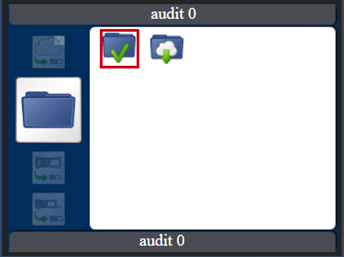

Press the down button to scroll to the 'Cloud to Base' menu and click the 'Enter' button to transfer the audit configuration  from cloud to base.  You should now see a green check mark in the right top corner of the 'Cloud to Base' menu icon indicating that this step has been taken successfully. Now press the 'Back' button to go back to the menu structure on the left.




Step 2: Select your audit


Press the down button to scroll to the  'Audit Manager' menu and press Enter. Choose the correct audit file and select it by pressing the Enter button. After selecting an audit, its name should appear on the top of the base station screen.





Step 3: Base to Loggers


Press the down button to scroll to the 'Base to Loggers' menu and press Enter. Click on the Bluetooth buttons on all of the loggers. Once all Loggers are successfully synchronized with the the Base Station, you should now see a green check mark in the right top corner of the 'Base to Loggers' menu icon.





To make sure that your loggers are ready to be installed on site, log in into the scadar.net website. Click on 'Audit Wizard' and double click on your audit. It should now show the 'Cloud to Base' and 'Base to Loggers' icons in green (instead of grey).
