How to reupload data from my Loggers into a new audit

How to reupload data from my Loggers into a new audit

Create a new audit in Audit Wizard which is identical to the original audit
  1. Navigate to Audit Wizard and create a new audit. Note that the new audit must have a unique name from the original audit.
  2. Fill in the 'Audit Location' menu and move on to the 'Configure base station and data loggers' menu
  3. Configure the Base Station serial number
  4. Configure the data Loggers and serial numbers
  5. Fill in the 'Create site and energy profile' menu and move on to the 'Transfer data' menu
Transfer the audit to the Base Station
  1. Connect your Base Station via Ethernet cable and perform the Cloud to Base step
  2. Go to the ‘Audit Manager’ Menu on the Base Station
  3. There should be a new audit folder with the name of the audit you just downloaded
  4. Press enter on the audit folder then press ‘select this audit'

  1. Make sure the symbol on the audit folder changes to a green check mark, and verify that it says the name of the audit at the top of the Base Station screen (in this example it says "audit 1")


Transfer the data from the Loggers to the Base Station
IMPORTANT: When moving on to the next step, skip the Base to Logger step. Performing the Base to Logger step will reprogram the Loggers and delete the existing data!

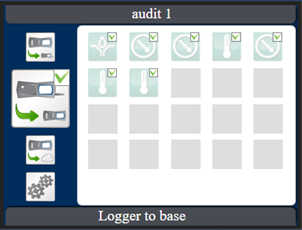

  1. Move on to the next menu and perform the Logger to Base step. This will retrieve the data from each of the Loggers. Progress bar will show 100%

  1. Before moving on, make sure that every Logger has a green check mark in the top right corner.
Upload the data into the cloud
  1. Once again, connect your Base Station to the internet via Ethernet cable
  2. Complete the Base to Cloud step on the Base Station
  3. Check that the audit has successfully synced by logging in to SCADAR.NET
